Inter-row shredder – model TIM-G

Versatile, quick and delicate for a work of quality


Very all-around shredder for its application in different conditions. Its optimal condition is the application on our carrying frame TPR model.

It can also be applied to other shredders only on indication and assembly at our premises. Its main operation is carried out by the rotation of the shredder itself on contact with the plant.

Its work is done quickly and effectively in cleaning around the strain and especially in a delicate way thanks to its particular sensitive and precise feeler (parallelogram).

The shredder reaches an optimal working condition when it is fed by the right amount of oil.

Product documentation and catalog
Technical specifications

Clicca sul pulsante verde per visualizzare le specifiche complete.

Model Width of the open machine Lenght of the open machine Lenght of the closed machine Maximum height of the machine Minimum height of the machine Working width Knives Weight
TIM-G1 120 cm 100 cm 120 cm 80 cm 37 cm 45 cm 14 200 kg
TIM-G2 140 cm 100 cm 140 cm 80 cm 37 cm 65 cm 22 230 kg
TIM-G3 160 cm 100 cm 160 cm 80 cm 37 cm 85 cm 28 250 kg
TIM-G4 180 cm 100 cm 180 cm 80 cm 37 cm 105 cm 36 272 kg

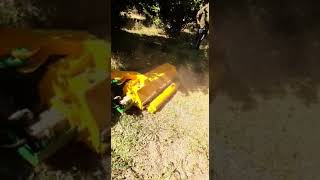

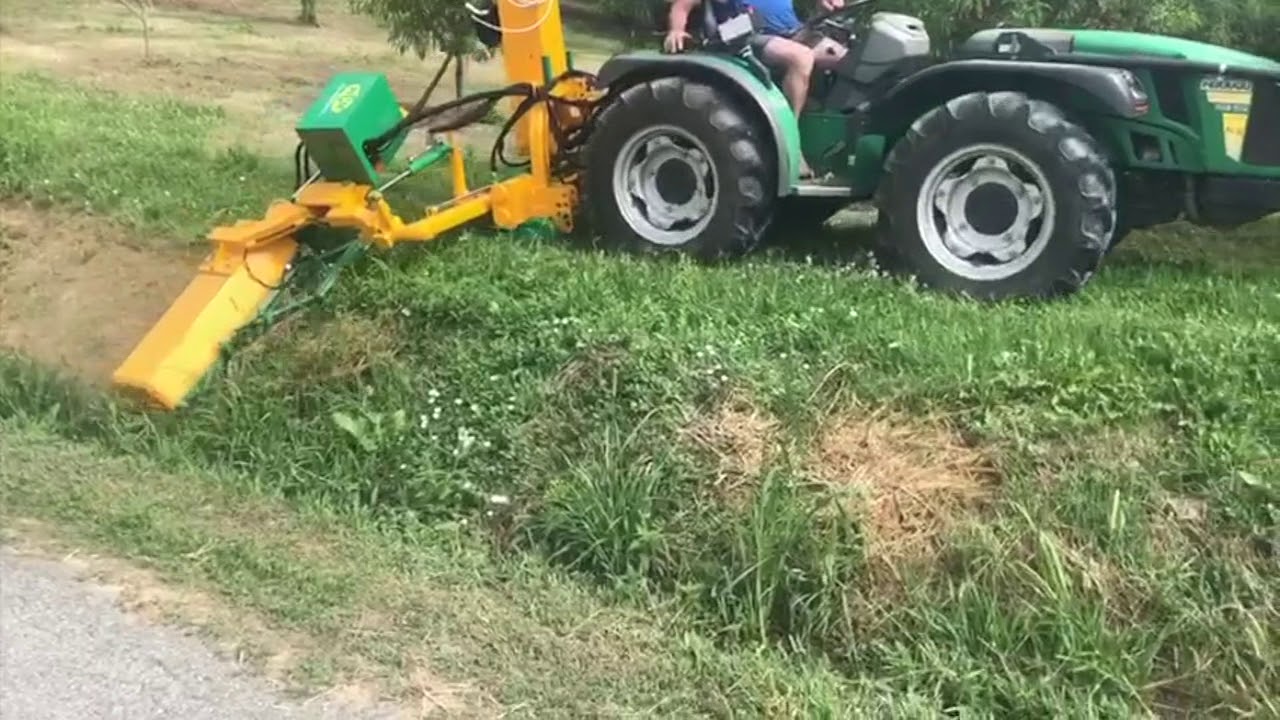

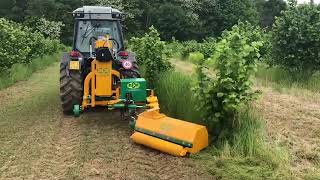

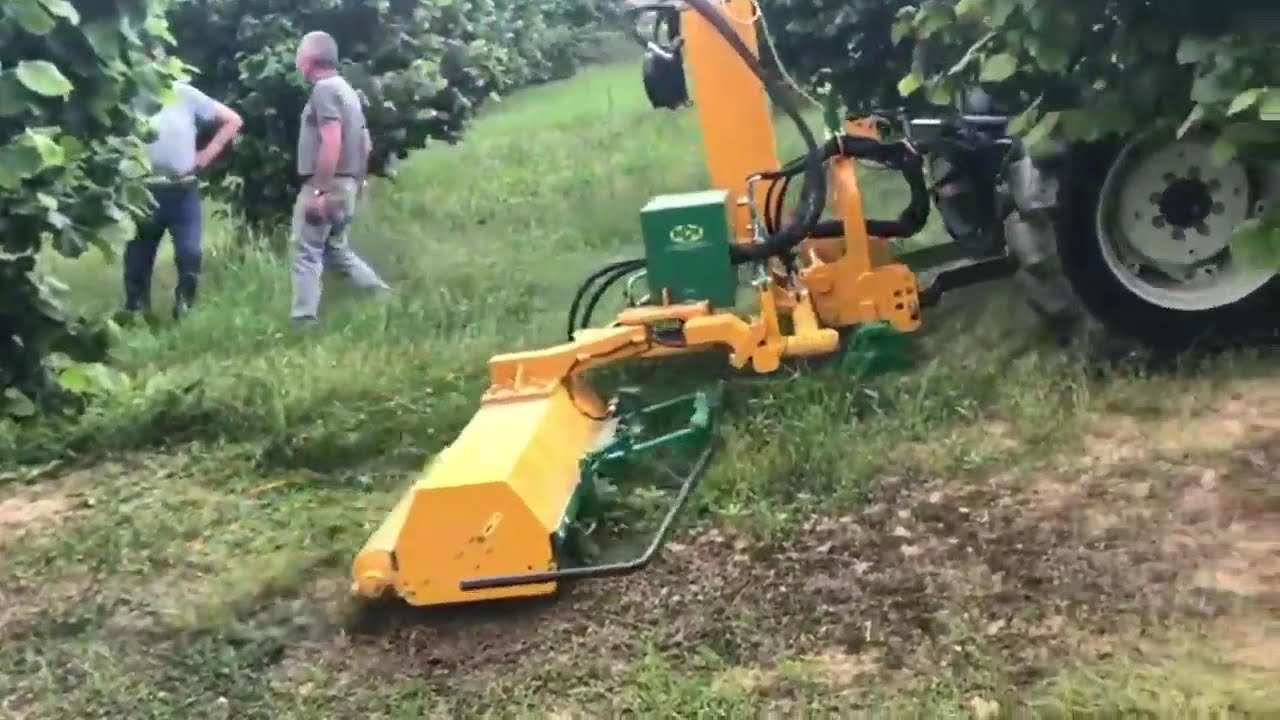

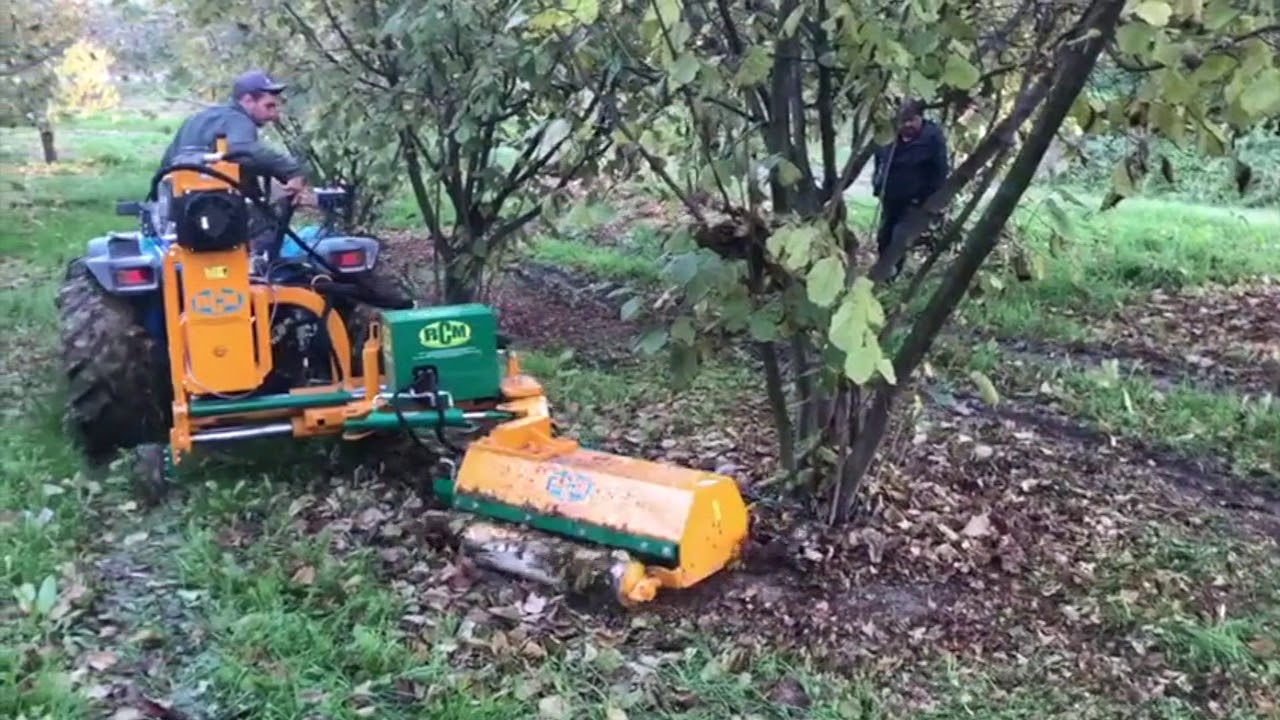

Click on the image to view the video
